Measure Twice, Grill Once: How to Measure Your Patio for an Outdoor Kitchen

A beautiful outdoor kitchen begins with something surprisingly simple: accurate measurements. Before choosing a grill, refrigerator or cabinet configuration, you need to understand exactly how much usable space your patio provides—and what already occupies that space.

Doors, windows, steps, structural posts, utility connections and walking paths can all affect the final layout. A measurement that is off by only a few inches may leave an appliance door unable to open, a walkway too narrow or a kitchen that does not fit as expected.

This guide explains how to measure for an outdoor kitchen and what information to collect before using a configurator or requesting a professional 3D design.

What You Will Need

You do not need specialized equipment to create a useful patio sketch. Gather these basic items before beginning:

• A sturdy tape measure or laser measuring tool
• Pencil and paper or graph paper
• A smartphone or camera
• Painter’s tape or sidewalk chalk
• A level, if you already own one
• Another person to hold the tape for longer measurements

Do not worry about creating a perfect architectural drawing. A clear sketch containing accurate measurements and labeled features is much more valuable than an attractive drawing with missing information.

Step 1: Draw the Basic Patio Shape

Begin by drawing the approximate shape of the available patio. It may be rectangular, L-shaped or divided by walls, columns or changes in elevation.

Measure the complete length and width of the patio and write each number directly on your sketch. If the patio has an irregular shape, divide it into smaller rectangles and measure each section separately.

Measure permanent structures rather than estimating from paver counts or furniture placement. Record dimensions in inches when possible because outdoor-kitchen cabinets and appliances are commonly specified by precise widths.

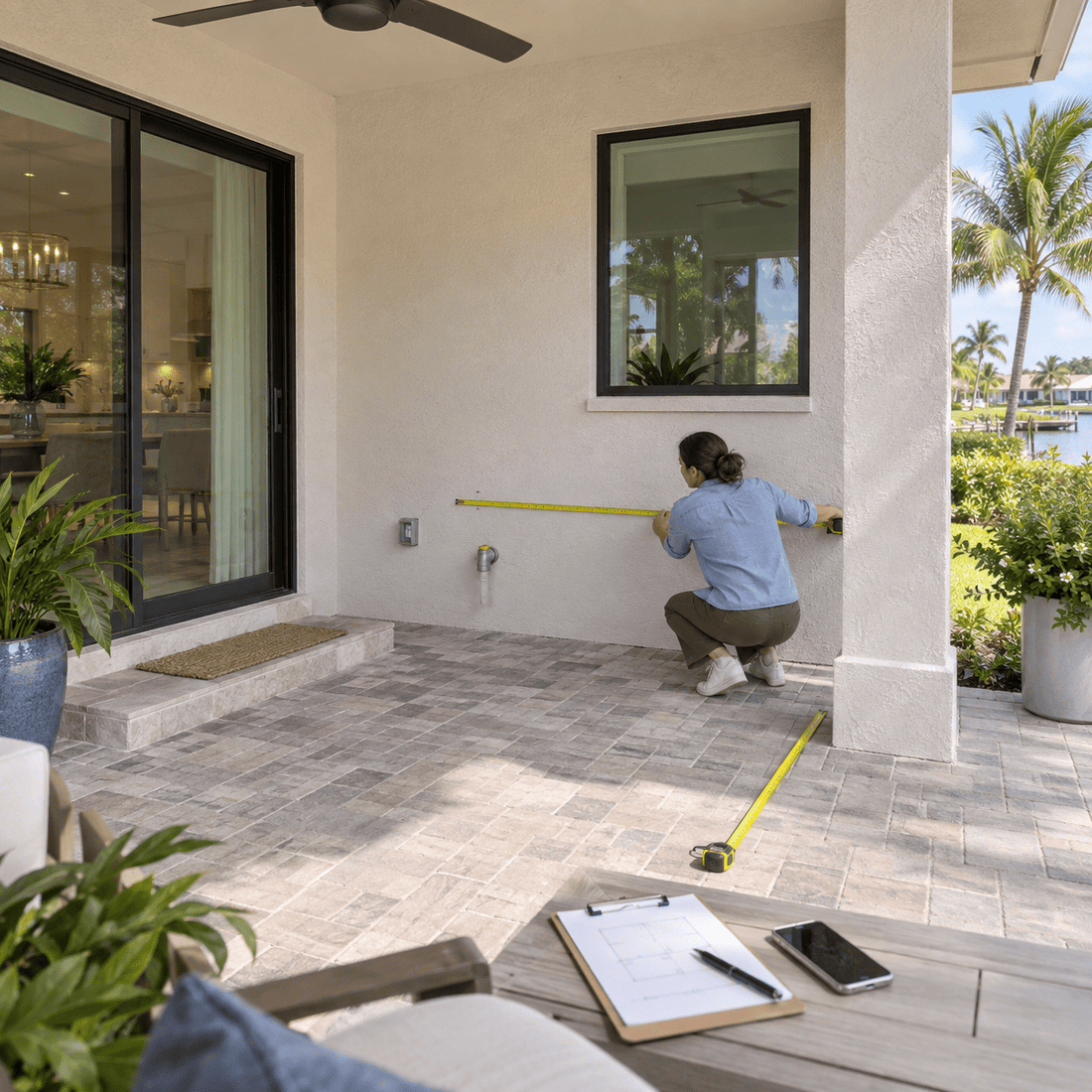

Step 2: Measure Every Wall

If the outdoor kitchen will sit against a wall, measure the entire wall from corner to corner. Then measure the sections between every door, window, column or other obstruction.

Also record:

• The wall material, such as stucco, block, siding or stone
• Any changes in wall depth
• Exterior trim that projects from the wall
• Existing outlets, hose connections and utility boxes
• Roof overhangs, soffits and gutters

Take measurements at more than one height. A wall may be clear at cabinet level but interrupted by window trim, outlets or decorative ledges higher up.

Step 3: Record Doors and Their Swing Direction

Doors are one of the most important features to document. Measure the complete frame—not only the opening—and mark which direction the door swings.

For sliding doors, identify which panel opens. For hinged doors, measure how far the door extends onto the patio when fully open.

An outdoor kitchen should not block a primary entrance or force people to walk through the cooking zone whenever they enter or leave the house.

Step 4: Measure Windows From the Ground Up

For every window near the proposed kitchen, record:

• The width of the complete frame
• The height of the complete frame
• The distance from the patio floor to the bottom of the frame
• Whether the window opens outward
• How far any sill or trim projects from the wall

Do not assume a countertop will fit beneath a window simply because the opening appears high enough. Countertop thickness, backsplash material and cabinet height must all be considered.

Step 5: Include Posts, Columns and Supports

Covered patios and lanais often contain structural posts that affect both cabinet placement and traffic flow. Measure the width and depth of each post, along with its distance from nearby walls and patio edges.

Never assume a post can be removed or relocated. Structural changes should only be evaluated by qualified professionals.

Step 6: Document Steps and Changes in Elevation

Measure the width, depth and height of every step near the proposed kitchen. Mark where the patio slopes, where pavers meet another surface and where raised foundations or curbs begin.

The kitchen must sit on a suitable, stable and reasonably level surface. An existing patio that appears flat may still slope intentionally for drainage, so final site preparation should be reviewed before installation.

Step 7: Locate Existing Utilities

Mark the location of all visible utilities, even if you do not know whether they can serve the new kitchen.

These may include:

• Electrical outlets and service panels
• Natural-gas or propane connections
• Water-supply lines
• Drainage connections
• Hose bibs
• Pool equipment and plumbing
• Air-conditioning equipment
• Irrigation controls

Photograph utility connections closely and from farther away so their locations are easy to understand. A qualified electrician, plumber or gas professional must determine whether an existing connection is appropriate for the intended appliance.

Step 8: Measure the Usable Counter Depth

An outdoor kitchen is deeper than its visible cabinet face. The complete footprint may include the cabinet, countertop overhang, handles or appliance projections and space needed behind the unit for utilities or ventilation.

If the kitchen includes guest seating, add the countertop overhang, stools and occupied seating depth to the plan. A bar may fit physically while still leaving too little room for people to walk behind the stools.

Always use the final product specifications when confirming depth. Do not assume that every cabinet, grill or refrigerator uses the same dimensions.

Step 9: Account for Appliance Doors and Grill Lids

Every appliance needs room to operate—not merely enough space to fit inside the cabinet run.

Check the space required for:

• The grill hood to open completely
• Refrigerator doors and drawers
• Trash pullouts
• Storage drawers and cabinet doors
• Dishwashers and ice makers
• Access panels and ventilation openings
• Pizza-oven doors and fuel connections

Record the exact manufacturer and model whenever possible. Installation dimensions, ventilation and clearance requirements vary between appliances.

Step 10: Preserve Comfortable Walking Paths

After measuring the physical space, consider how people will move through it. Identify the routes connecting the house, grill, pool, dining area, yard and any exterior gates.

Allow additional room when:

• A walkway passes behind occupied stools
• Two people may cook together
• An appliance door opens into the pathway
• The kitchen sits near a pool or step
• Guests must pass the grill to reach drinks

General planning guidelines can help establish an initial layout, but appliance instructions, accessibility needs, building codes and individual site conditions determine the final requirements.

Step 11: Mark the Layout With Painter’s Tape

Once you have a preliminary design, use painter’s tape or sidewalk chalk to mark the proposed cabinet footprint on the patio.

Walk through the space as if the kitchen were already installed. Open the nearby house door, place chairs where the stools will sit and stand in front of the imaginary grill.

This simple exercise may reveal issues that are difficult to see on paper, including:

• A corner that feels too tight
• A refrigerator opening into a busy pathway
• Insufficient room behind bar stools
• A grill positioned too close to a window
• Too little preparation space beside an appliance

Step 12: Take Helpful Photos and Video

Photos give the designer context that measurements alone cannot provide. Take wide pictures from every corner of the patio, followed by closer images of doors, windows, steps, utilities and obstacles.

For the most useful results:

• Photograph the entire patio from several angles.
• Stand far enough away to show relationships between features.
• Include the tape measure in detailed photos when helpful.
• Take pictures during daylight.
• Capture the route from the house to the proposed kitchen.
• Record a slow video walking around the complete area.

Do not rely on one close-up photo. A designer needs to understand how the kitchen relates to the house, patio and surrounding outdoor-living space.

Outdoor-Kitchen Measurement Checklist

• Overall patio length and width
• Length of every usable wall
• Door widths, locations and swing directions
• Window widths, heights and sill heights
• Posts, columns and roof supports
• Steps and changes in floor elevation
• Utility locations
• Pool edges and equipment
• Property walls, fences and railings
• Existing furniture and planned seating
• Primary walking paths
• Ceiling, soffit and roof heights
• Photos from multiple angles

Frequently Asked Questions

Do my patio measurements have to be professionally prepared?

No. A clear hand-drawn sketch with accurate dimensions and helpful photographs can provide enough information to begin exploring a design. Final dimensions, utilities and site conditions should still be verified before ordering or installation.

Should I measure in feet or inches?

Using inches reduces confusion and makes it easier to compare your measurements with cabinet and appliance specifications. If you write feet and inches, label them clearly.

How deep is an outdoor kitchen?

Depth varies by cabinet system, countertop, appliance and seating arrangement. Use the specifications for the products being considered rather than relying on one universal measurement.

Can an outdoor kitchen sit against the house?

Possibly, but wall materials, windows, doors, roof overhangs, ventilation and appliance clearances must be reviewed. Follow the appliance manufacturer’s instructions and all applicable local requirements.

What if my patio is not level?

Record the location of visible slopes or elevation changes and take photographs. A qualified professional may need to assess the surface and determine what site preparation is required.

Should utility locations determine the entire layout?

Utilities can influence cost and convenience, but they are only one part of the design. Traffic flow, ventilation, appliance clearances and preparation space must also be considered. Qualified professionals should evaluate utility requirements.

Good Measurements Prevent Expensive Surprises

Taking time to measure walls, doors, windows, posts, steps and utilities gives your outdoor-kitchen project a much stronger starting point. Add clear photographs and a simple sketch, and a designer can better understand how the space actually functions.

With accurate information and a 3D design, you can make confident choices about the layout before cabinets and appliances arrive—helping your finished outdoor kitchen look intentional, fit correctly and remain comfortable to use.

This article provides general planning information. Final dimensions, product specifications, appliance clearances, structural conditions, utilities, permits and local codes must be verified before ordering or installation. Sunzout supplies products and ready-to-assemble systems but does not provide installation.
